What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

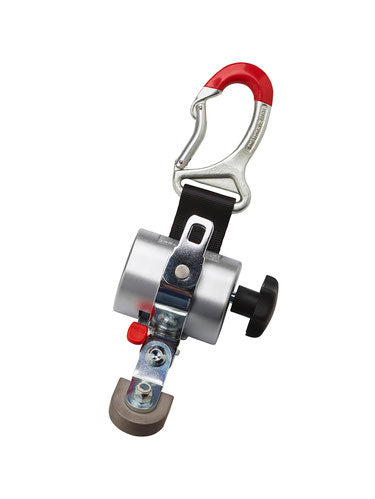

AMF Bruns Platinum Series Retractor | ATTACHMENT OPTIONS

Vendor: AMF Bruns
Regular price: $162.00
Sale price: $162.00
Unit price: per

Shipping calculated at checkout.

SYSTEM

FITTING

Quantity

Quantity must be 1 or more

Upgrade or replace your high-capacity wheelchair securement hardware with the AMF Bruns PlatinumSeries Protektor Replacement Retractor. Built for demanding commercial use, this heavy-duty single-unit retractor supports wheelchairs and mobility devices up to 160 kg and is designed for vehicles that require maximum strength, durability, and compliance.

SKU: H450830HL | VENDOR: AMF BRUNS

AMF Bruns Platinum Series Retractor | ATTACHMENT OPTIONS

✔ Free Shipping 🔄 Replacement Retractor 🏷 AMF Bruns

Key Features

🎛

Single Tensioning Knob

Single knob tensioning secures wheelchair and occupant quickly and reliably.

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

👟

Foot Release Lever

Hands-free release — operator can disengage the retractor with a foot lever without bending down.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

📐

Low Profile & Compact

No mounting bracket required — retractors fit under most wheelchair footrests.

♿

Universal Design

Accommodates virtually all wheelchair designs, including scooters.

What's Included

Qty	Component
1	AMF Bruns Platinum Series Retractor (your chosen attachment/fitting model)

End Fitting	Floor Type	Example Legacy SKU	Lead Time
J-Hook	L-Track	H350800 HV → H450830 HL	Standard
J-Hook	Smart	H350800 HM → H450830 HM	Standard
Carabiner	L-Track / Smart	H350800 CV / CM / LV / LM	10 days
Loop	L-Track / Smart	H350800 LV / LM	10 days

Full Feature Details

The PlatinumSeries features fully self-tensioning operation with a manual rotary knob override, a robust zinc die-cast cover, and a low-profile design that helps minimize floor obstruction. It is compatible with L-Track and Smart floor systems and supports multiple wheelchair attachment styles, including J-hook, carabiner, and loop ends.

Feature	Description
Heavy-Duty 160 kg Capacity	Handles powered wheelchairs with integrated lap belts and ProSafe adapters
Fully Self-Tensioning	Automatic belt adjustment with manual rotary knob override
Ultra-Durable Construction	Zinc die-cast cover withstands intensive commercial use
Low-Profile Design	Minimizes floor obstruction and improves vehicle accessibility
Universal Compatibility	Works with L-Track and Smart floors plus J-hook, carabiner, or loop wheelchair ends
WC18/WC19 Certified	Meets current RESNA standards for wheelchair securement and occupant protection

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 5-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: PlatinumSeries Product Sheet PDF | Protektor Installation Manual | Protektor User Manual

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H450830HL
Price	From 162.00 — price shown is per unit (varies by option)
Shipping	Free Shipping
Warranty	5-year limited
Use / Installation	No special installation required — designed for daily operator use.

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.
