What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

AMF Bruns | H 470 254 Occupant Sub - Assembly, Retractor Shoulder Belt, Manual Height Adjuster - WheelchairStrap.com

AMF Bruns Occupant Sub-Assembly, Retractor Shoulder Belt, Manual Height Adjuster | H 470 254

Vendor: AMF Bruns
Regular price: $175.95
Sale price: $175.95
Unit price: per

Shipping calculated at checkout.

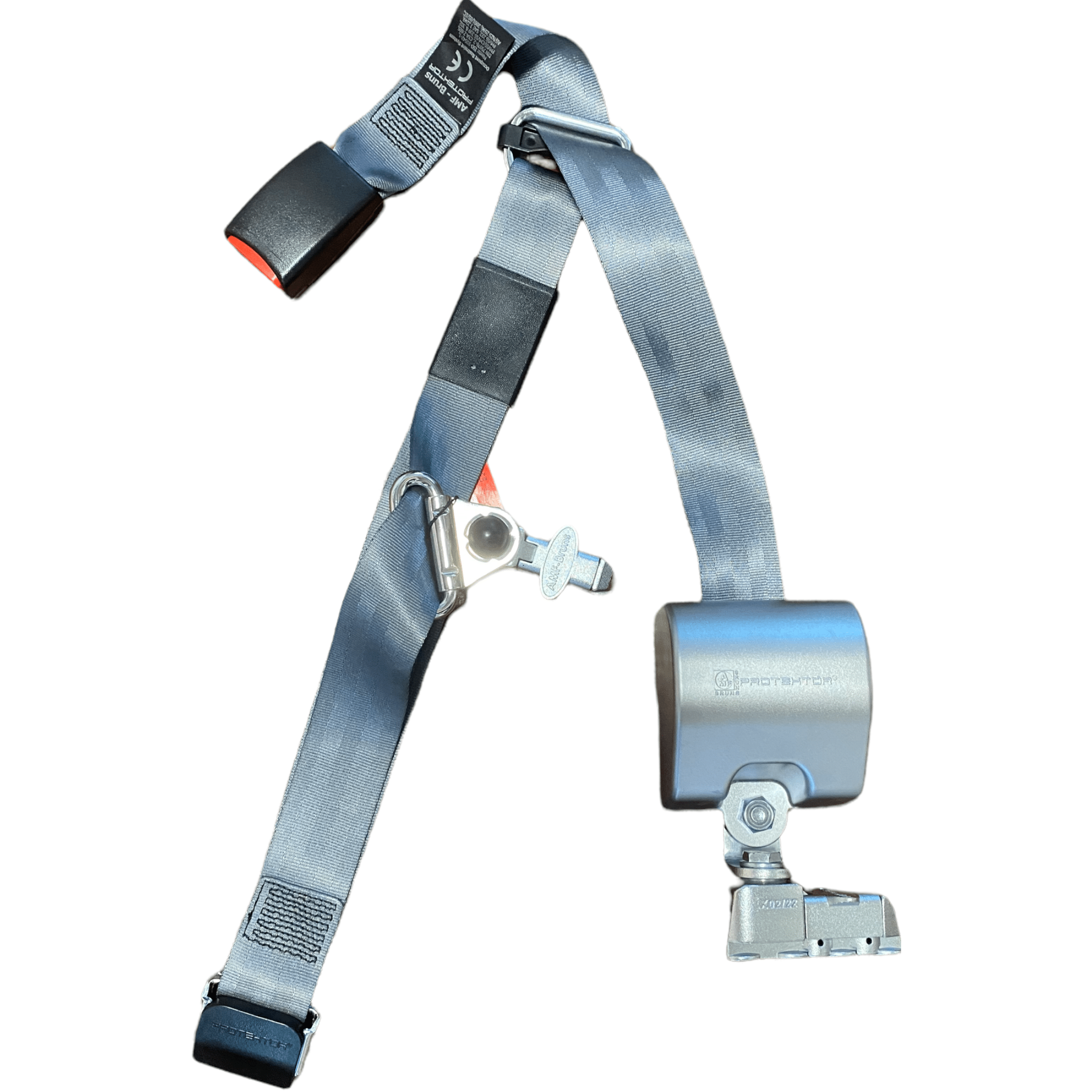

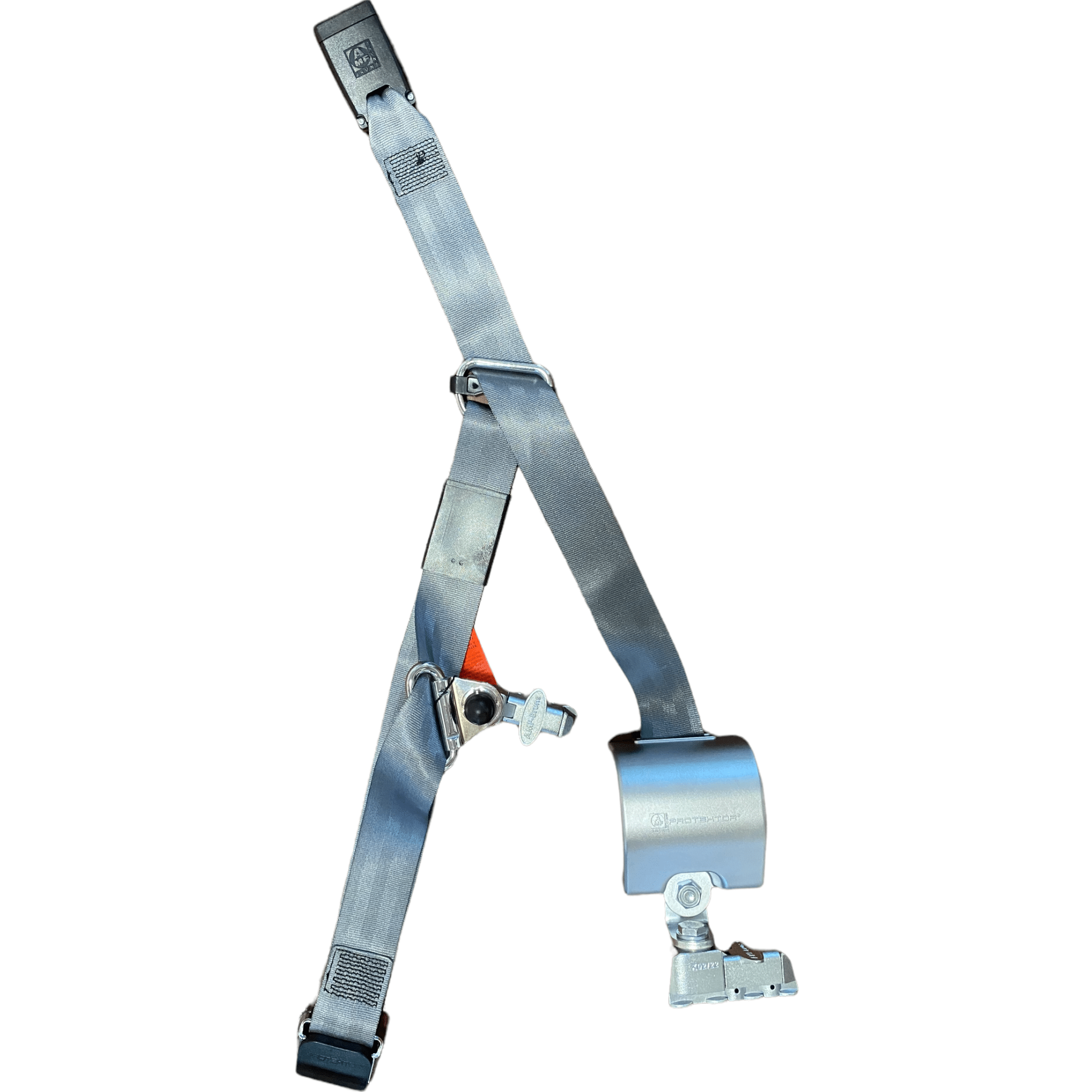

⚠️ SUB-ASSEMBLY ONLY: Provide core retractor shoulder belt components with the AMF Bruns H470254 Occupant Sub-Assembly. This sub-assembly features automatic retraction shoulder belt with manual height adjuster, gray webbing, and push-button release—but requires L-Track fittings for complete H370255 installation. Not a complete ready-to-install part.

SKU: H 470 254 | VENDOR: AMF BRUNS

AMF Bruns Occupant Sub-Assembly, Retractor Shoulder Belt, Manual Height Adjuster | H 470 254

✔ Free Shipping 🔄 Replacement Retractor 🏷 AMF Bruns

Key Features

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

What's Included

Qty	Component	SKU
1	AMF Bruns Occupant Sub-Assembly, Retractor Shoulder Belt, Manual Height Adjuster	H 470 254

Full Feature Details

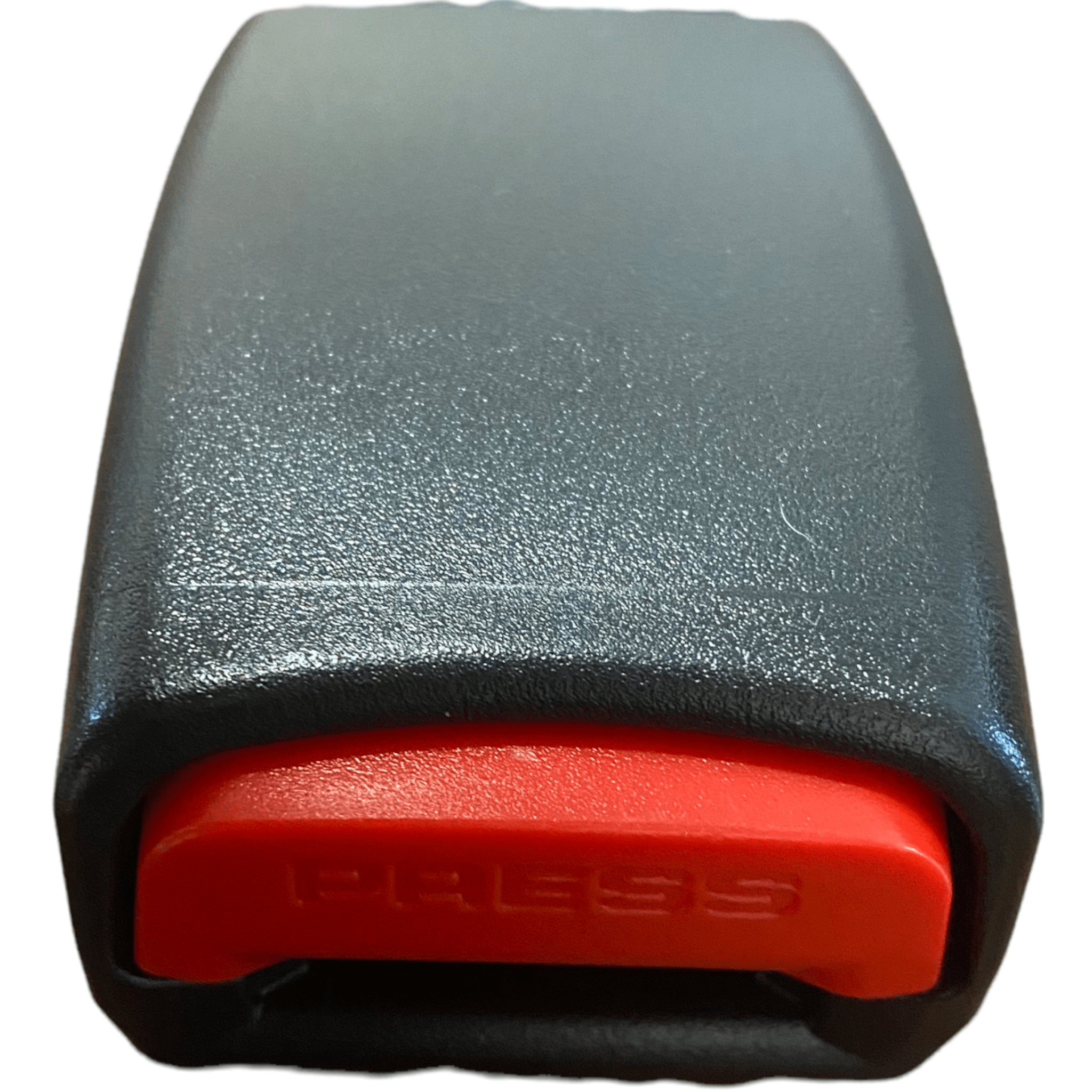

Designed for bolted top/bottom mounting with brackets, this sub-assembly includes gray webbing automatic retractor shoulder belt, manual height adjuster for custom passenger fit, push-button buckle, and protective metal cover for commercial vehicle durability. For complete ready-to-install system with L-Track top/bottom fittings, upgrade to full H370255 assembly.

Feature	Description
Manual Height Adjuster	Easy positioning for diverse passenger shoulder heights
Automatic Retraction	Self-tensioning gray webbing with push-button release
Metal Cover Protection	Shields mechanism for commercial vehicle durability
Bolt-On Mounting	Top/bottom brackets for fixed installations (L-Track sold separately)
Sub-Assembly Only	Core components; complete ready-to-install is H370255

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H 470 254
Price	175.00 — price shown is per unit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	No special installation required — designed for daily operator use.

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

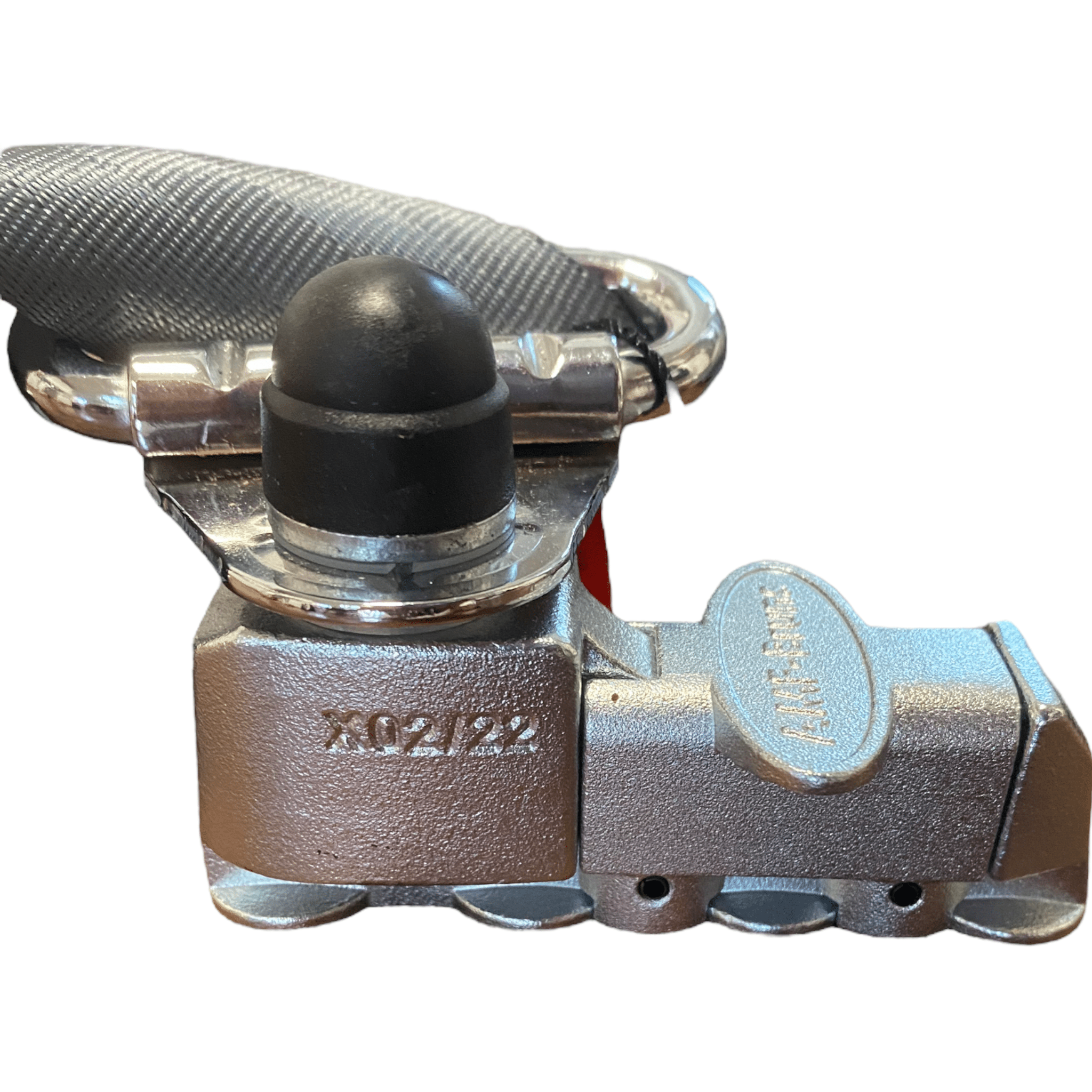

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.
