INQLINE® SECUREMENT SYSTEM | Rear-Entry Winch & Retractor System with Integrated Front Tie-Downs qstraint.com/inqline ↗
INQLINE Securement — Kit Level:
TIER 1
Base Kit (Q-84030)
→
TIER 2
+ Retractors (Q-84040)
→
TIER 3
+ Install Kit (Q-84041)
→
TIER 4 — YOU ARE HERE ✓ COMPLETE
Full System (Q-84043)
✅ Everything Included — No Additional Purchases Required for Installation
SKU: Q-84043 | VENDOR: Q'STRAINT
INQLINE® Securement — Complete System
With QRT-360 Retractors + Occupant Belt + Install Kit | Q-84043
✔ Free Shipping 🏆 ADA Compliant 💥 Crash Tested 30 mph / 20G ✅ Complete Turn-Key Package 🔄 QRT-360 360° Webbing
The Q-84043 is the ultimate INQLINE SECUREMENT package — a complete, turn-key boarding and 4-point securement system featuring the QRT-360 rear retractors. The QRT-360's 360-degree webbing rotation accommodates wheelchairs of any size, from standard manual chairs to large power chairs, without webbing twist or angle compromise. If your fleet serves a diverse mix of passengers in varied wheelchairs, this is the recommended complete system. One order covers everything.
Everything in the Complete System Q-84043:
✅ INQLINE SECUREMENT Winch System ✅ QRT-360 Rear Retractors (×2) ✅ Occupant Lap/Shoulder Belt ✅ Installation Hardware Kit
Why the QRT-360? The Complete System for Mixed Fleets
🔄
360° Webbing Freedom
The QRT-360 allows webbing to exit from any angle — no repositioning the retractor for different chair widths or footrest configurations. Faster boarding, cleaner installation.
♿
Any Chair, Any Size
From standard lightweight chairs to heavy power wheelchair systems, the QRT-360 handles the securement angle without compromise — critical for paratransit and NEMT services with mixed ridership.
⚡
Faster Securement
Less time adjusting angles means faster loading — a measurable efficiency gain for high-volume routes and scheduled pickup windows where every minute matters.
Key Features
🕹️
Powered Thumb Controller
Precision powered boarding up any ramp slope — a single operator can safely guide even large or heavy wheelchairs without physical effort.
🔄
QRT-360 Rear Tie-Downs
360° webbing rotation handles any wheelchair at any angle — eliminates webbing twist and delivers consistent securement across your entire passenger population.
🔒
Integrated Front Tie-Downs
Winch units eliminate the front tie-down step — integrated into the boarding system itself, creating a faster, more streamlined securement workflow.
🦺
Occupant Belt Included
Lap/shoulder belt included and compliant with FMVSS 209 and ADA requirements for wheelchair-seated passenger restraint.
🔧
Install Hardware Included
All brackets, fasteners, and anchoring components included — no additional hardware order needed for a professional vehicle installation.
📡
'Final Squeeze' Technology
Electronic sensors calculate correct tension automatically — consistent results from every operator on every trip, eliminating inconsistency in daily operations.

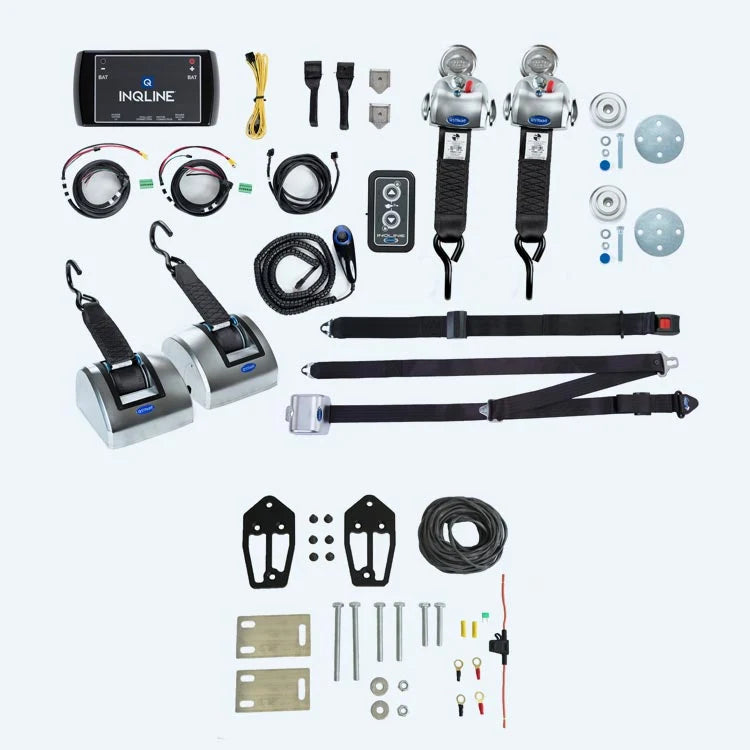

What's Included — Q-84043 Complete System
| Qty |
Component |
Part # |
| INQLINE SECUREMENT Base Components |
| 1 |
Main Controller, INQLINE |
QS01093 |
| 1 |
Cable Harness, Splitter INQLINE |
QS00140 |
| 2 |
INQLINE Hook Hanger |
QS00202 |
| 1 |
LH SECUREMENT Cable Harness |
QS00148 |
| 1 |
RH SECUREMENT Cable Harness |
QS00149 |
| 1 |
Joy Stick Cable Harness |
QS00143 |
| 1 |
Wall Unit, INQLINE |
QS00156 |
| 1 |
Joy Stick, INQLINE |
QS00157 |
| 1 |
INQLINE SECUREMENT, RH |
Q840030 |
| 1 |
INQLINE SECUREMENT, LH |
Q840031 |
| Complete System Additions |
| 2 |
QRT-360 Retractor Assembled with SNC |
Q011022 |
| 2 |
SLIDE-N-CLICK Bottom Assembly |
Q8-7580-A |
| 1 |
Lap/Shoulder Belt Combo |
Q8-6323 |
| 1 |
Extension L/S Combo Belt |
Q8-6340 |
| 1 |
INQLINE Installation Kit |
QS12054 |
Vehicle Applications
🚑 Non-Emergency Medical Transport (NEMT) 🚌 Paratransit / Community Transit 🚐 Wheelchair-Accessible Van (WAV) ♿ Mixed or Diverse Wheelchair Fleet 🔄 New Vehicle Fleet Build-Out
ℹ️ Entry Type: Rear-entry only. For side-entry flexibility, see INQLINE ASSIST (Q-84027 / Q-84035).
Standards & Compliance
ISO 10542-1Wheelchair Tie-Down & Occupant Restraint
RESNA WC-4 §18Wheelchair Securement Systems
FMVSS & CMVSS 209/302Seat Belts & Flammability
CSA Z605Wheelchair Securement (Canada)
Fully ADA CompliantAmericans with Disabilities Act
🛡
Warranty: 2-year limited (registration at
qstraint.com required). Without registration, 1-year limited applies.
⚠
California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65
Specifications
| Specification |
Detail |
| Brand |
Q'Straint |
| SKU |
Q-84043 |
| System |
INQLINE Securement Complete — QRT-360 + Belt + Install Kit |
| Entry Type |
Rear-Entry Only |
| System Weight |
27 lbs. |
| Crash Test Rating |
30 mph (48 kph) / 20G — Certified |
| Retractor Type |
QRT-360 Automatic (360° webbing, rear tie-downs, qty 2) |
| Occupant Belt |
Lap/Shoulder Belt Included |
| Install Hardware |
Included |
| Warranty |
2-year limited (registration required); 1-year without |
| Installation |
Professional installation required |
Ready to install the most versatile INQLINE system available?
Q-84043 is our most comprehensive INQLINE Securement kit. Call for fleet pricing and installation resources.
