What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

INQLINE Winch & Restraint w/ Installation Kit | Q - 84041 - WheelchairStrap.com

Q'Straint INQLINE Securement + Installation Kit | Q-84041

Vendor: Q'Straint
Regular price: $3,378.95
Sale price: $3,378.95
Unit price: per

Shipping calculated at checkout.

INQLINE® SECUREMENT SYSTEM | Rear-Entry Winch & Retractor System with Integrated Front Tie-Downs qstraint.com/inqline ↗

INQLINE Securement — Choose Your Kit Level:

TIER 1

Base Kit (Q-84030)

TIER 2

+ Retractors (Q-84039 / Q-84040)

TIER 3 — YOU ARE HERE

+ Install Kit (Q-84041)

TIER 4 — COMPLETE

Full System (Q-84042 / Q-84043)

SKU: Q-84041 | VENDOR: Q'STRAINT

INQLINE® Securement + Installation Kit
Base Kit with All Mounting Hardware | Q-84041

✔ Free Shipping 🏆 ADA Compliant 💥 Crash Tested 30 mph / 20G 🔧 Includes Install Hardware

30 mph

Crash Tested

Force Rating

27 lbs

System Weight

2 Year

Warranty*

The Q-84041 combines the INQLINE SECUREMENT Base Kit with the vehicle installation hardware kit — all the mounting brackets, fasteners, and anchoring hardware needed for a professional vehicle installation. This is the right choice if you already have compatible rear tie-down retractors in your vehicles and just need the INQLINE winch system plus hardware to complete the installation. For a complete turn-key package including retractors, see Q-84042 or Q-84043.

What's Added vs. Base Kit (Q-84030):

✚ Full Installation Hardware Kit ✚ Floor Mounting Brackets & Fasteners

Is Q-84041 the Right Kit for Your Fleet?

✅ Choose Q-84041 If:

You already have Q'STRAINT QRT rear retractors in your vehicles
Your fleet uses existing 4-point rear tie-downs and only needs the boarding winch system
You want installation hardware bundled with the winch kit
You have an in-house installer or upfitter ready to complete the work

⬆️ Consider Q-84042 or Q-84043 If:

You need rear tie-down retractors included in the order
You want an occupant lap/shoulder belt included
You prefer a complete, all-in-one system order
You're equipping a brand new vehicle with no existing retractors

Key Features

🕹️

Ergonomic Thumb Controller

Powered steering for precise wheelchair guidance up any ramp — uphill slope, curbside angle, or uneven surface handled with a single thumb.

🔒

Integrated Front Tie-Downs

Dual winch units eliminate the separate front tie-down step — the boarding system and front securement are handled simultaneously.

🔧

Installation Hardware Included

All mounting brackets, fasteners, and hardware required for vehicle installation are included — no separate order needed for the hardware.

🎛️

Wall Control Panel

2-button wall unit for engaging, releasing, and applying the 'final squeeze' tension without the operator reaching across the vehicle.

↩️

360° Webbing Guide

Patent-pending belt routing reduces footrest interference and improves passenger comfort, even in tighter vehicle interiors.

📡

'Final Squeeze' Technology

Electronic sensor system ensures the correct tension is applied every time — no manual guesswork, consistent securement from every operator.

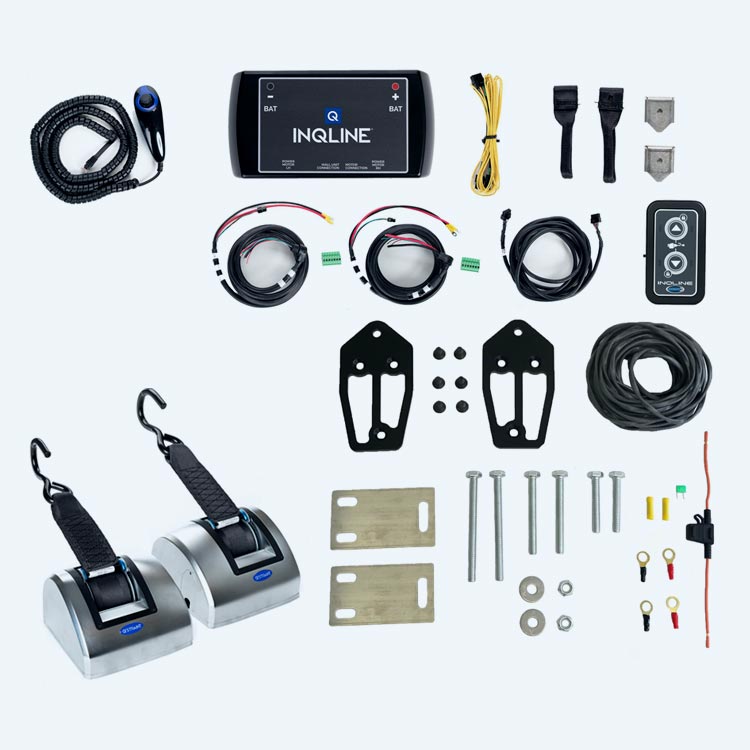

What's Included — Q-84041

Qty	Component	Part #
INQLINE SECUREMENT Base Components
1	Main Controller, INQLINE	QS01093
1	Cable Harness, Splitter INQLINE	QS00140
2	INQLINE Hook Hanger	QS00202
1	LH SECUREMENT Cable Harness	QS00148
1	RH SECUREMENT Cable Harness	QS00149
1	Joy Stick Cable Harness	QS00143
1	Wall Unit, INQLINE	QS00156
1	Joy Stick, INQLINE	QS00157
1	INQLINE SECUREMENT, RH	Q840030
1	INQLINE SECUREMENT, LH	Q840031
Added in Q-84041 — Installation Hardware
1	INQLINE Installation Kit	QS12054

⚠ Not Included: Rear tie-down retractors and occupant belt. If you need a complete system, see Q-84042 (with QRT Deluxe) or Q-84043 (with QRT-360).

Vehicle Applications

🚑 Non-Emergency Medical Transport (NEMT) 🚌 Paratransit / Minibus 🚐 Wheelchair-Accessible Van (WAV) 🔄 Fleet Upgrades — Vehicles with Existing Retractors

ℹ️ Entry Type: Rear-entry only. Professional installation required.

Standards & Compliance

ISO 10542-1Wheelchair Tie-Down & Occupant Restraint

RESNA WC-4 §18Wheelchair Securement Systems

FMVSS & CMVSS 209/302Seat Belts & Flammability

CSA Z605Wheelchair Securement (Canada)

Fully ADA CompliantAmericans with Disabilities Act

🛡 Warranty: 2-year limited (registration required at qstraint.com). Without registration, 1-year limited applies.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 INQLINE Securement Brochure | INQLINE Data Sheet
INQLINE Securement Installation Manual (QC17027) | INQLINE Securement Use & Care Manual (QC17014)

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q-84041
System	INQLINE Securement Base + Installation Hardware Kit
Entry Type	Rear-Entry Only
System Weight	27 lbs.
Crash Test Rating	30 mph (48 kph) / 20G — Certified
Rear Retractors	Not Included (customer-supplied or sold separately)
Occupant Belt	Not Included
Warranty	2-year limited (registration required); 1-year without
Installation	Professional installation required

Complete Your System

⬆️

Complete System — QRT Deluxe

Q-84042

⬆️

Complete System — QRT-360

Q-84043

🔧

Standalone Install Kit

Upgrading existing vehicles or building a new fleet?

We help NEMT and paratransit operators select the right INQLINE kit for their exact situation every day.

📞 800.884.6456 ✉ Email Us
