What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'Straint 4 QRT Max Retractors Slide 'N Click HR131 Retractable Lap & Shoulder / Retractable L | Q - 8306 - SC |

Q'Straint 4 QRT Max Retractors Slide 'N Click Fittings HR131 Retractable Lap & Shoulder / Retractable L-Track Height Adj & 131º Bracket | Q-8306-SC

Vendor: Q'Straint
Regular price: $1,045.95
Sale price: $1,045.95
Unit price: per

Shipping calculated at checkout.

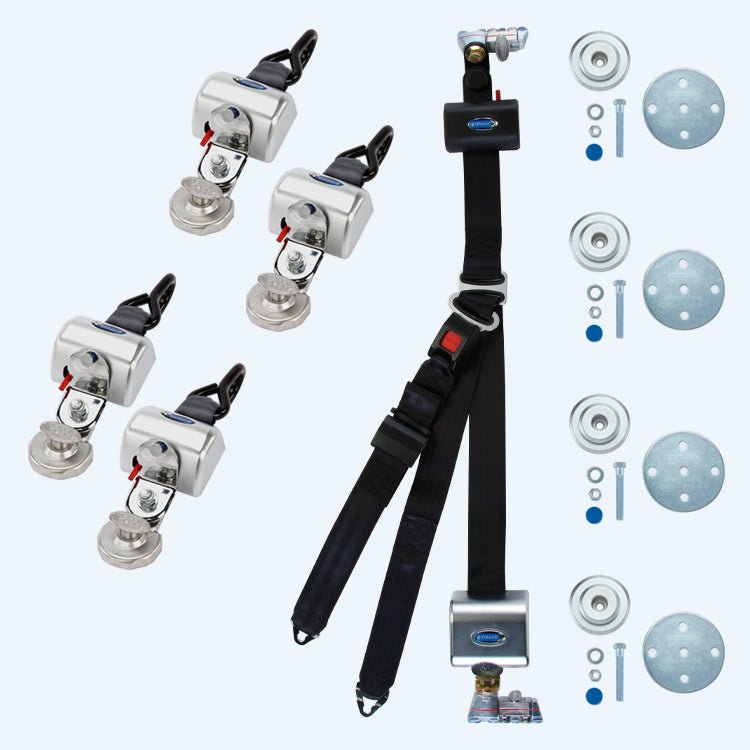

The Q-8306-SC is a complete 4-point QRT Max wheelchair securement kit featuring Slide 'N Click fittings and the HR131 combination belt system. This all-in-one kit includes four knobless retractors, four SNC floor anchors, and a retractable lap and shoulder belt with integrated L-Track height adjuster and 131° bracket — the premium choice for SNC-equipped transit vehicles.

SKU: Q-8306-SC | VENDOR: Q'STRAINT

Q'Straint 4 QRT Max Retractors Slide 'N Click Fittings HR131 Retractable Lap & Shoulder / Retractable L-Track Height Adj & 131° Bracket | Q-8306-SC

✔ Free Shipping📦 Complete Kit🏷 Q'Straint

Key Features

👋

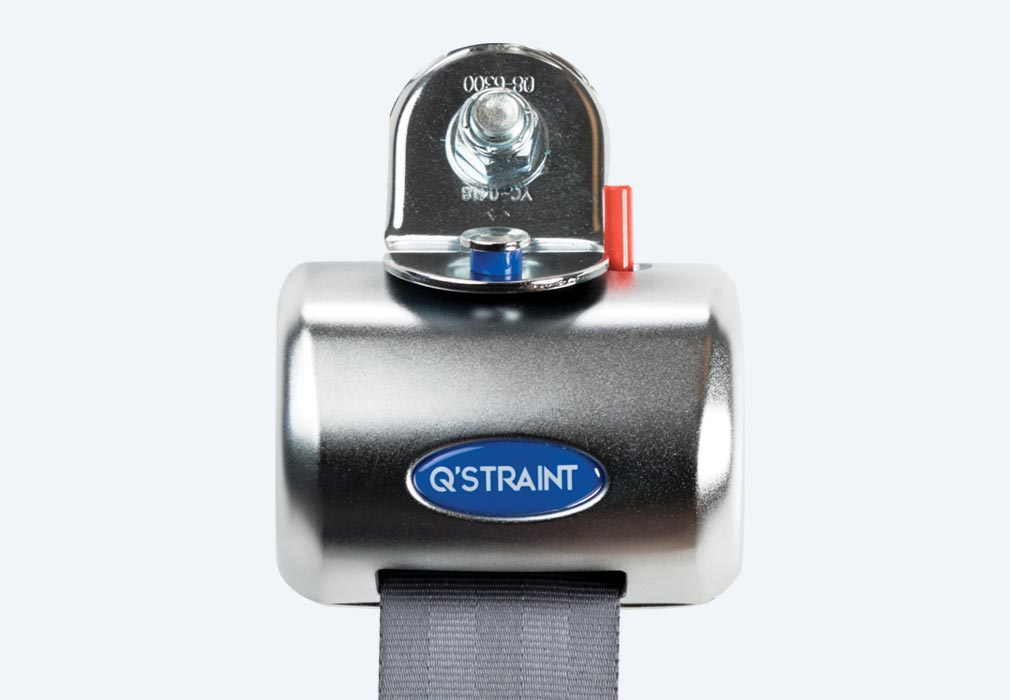

Knobless One-Handed Operation

No knobs to interfere with wheels or footrests. Faster hook-up with zero tightening confusion.

🔄

Fully Automatic & Self-Tensioning

Retractor locks and tensions automatically — no manual adjustment ever required.

🔒

Automatic Self-Locking

Securely locks the moment the J-hook engages the wheelchair frame. One motion. Done.

✅

Crash Tested & Certified

Meets ANSI/RESNA WC18, SAE J2249, FMVSS 209/210 — the highest transit safety standards.

What's Included

Qty	Component	SKU

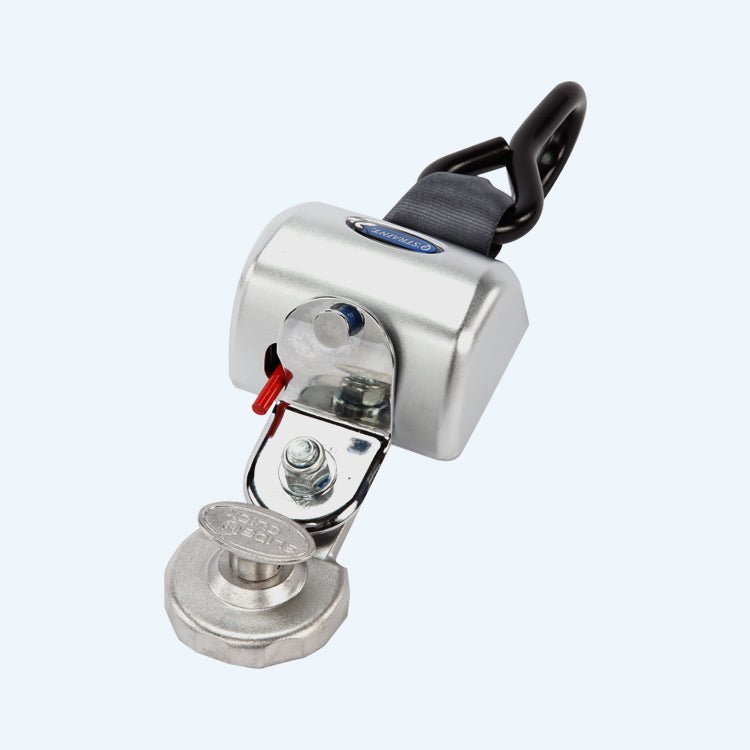

4	QRT Max Retractors w/ Slide 'N Click Fitting	Q8-6209-SC
1	HR131 Retractable Lap & Shoulder Belt w/ L-Track Height Adjuster & 131° Bracket	Q8-6326-A1
4	Slide 'N Click Floor Anchorages	Q8-7580-A

Full Feature Details

Key Feature Summary

Feature	Description
Knobless One-Handed Operation	No knobs to interfere with wheels or footrests. Faster hook-up with zero tightening confusion.
Fully Automatic & Self-Tensioning	Retractor locks and tensions automatically — no manual adjustment ever required.
Automatic Self-Locking	Securely locks the moment the J-hook engages the wheelchair frame. One motion. Done.
Crash Tested & Certified	Meets ANSI/RESNA WC18, SAE J2249, FMVSS 209/210 — the highest transit safety standards.

Vehicle Applications

🚌 School Bus🚌 Transit / City Bus🚐 Minivan / WAV🚑 Paratransit / NEMT🚂 Rail / Coach

Standards & Compliance

ANSI/RESNA WC18Wheelchair Tiedowns & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down & Occupant Restraint Systems

FMVSS 209/210Federal Motor Vehicle Safety Standards — Belts & Buckles

📘 Compliance & Documentation: Visit our Compliance Resource Center.

🛡 Warranty: 3-year limited. *Registration required at qstraint.com for full coverage.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q-8306-SC
Price	$976.00 — per kit
Shipping	Free Shipping
Warranty	3-year limited
Anchorage Type	Slide 'N Click
Retractors	4 × QRT Max Knobless (Q8-6209-SC)
Occupant Belt	HR131 Retractable Lap & Shoulder \| Q8-6326-A1
Floor Anchors	4 × SNC Floor Anchor (Q8-7580-A)

Frequently Asked Questions

Is professional installation required? +

Yes. Q'Straint wheelchair securement systems must be installed by a qualified technician. Improper installation may void the warranty and compromise safety.

What is the warranty? +

Q'Straint offers a 3-year limited when registered at qstraint.com. See qstraint.com for full terms.

What vehicles is this compatible with? +

See Vehicle Applications above. Contact us at (972) 420-0800 or sales@wheelchairstrap.com for fleet questions.
