What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'UBE Bolt - in Wheelchair and Occupant Securement Kit for L - Track | Q'Straint - WheelchairStrap.com

Q'UBE Bolt-in Wheelchair and Occupant Securement Kit w/ SNC | Q'Straint

Vendor: Q'Straint
Regular price: $2,137.95
Sale price: $2,137.95
Unit price: per

Shipping calculated at checkout.

Quantity

Quantity must be 1 or more

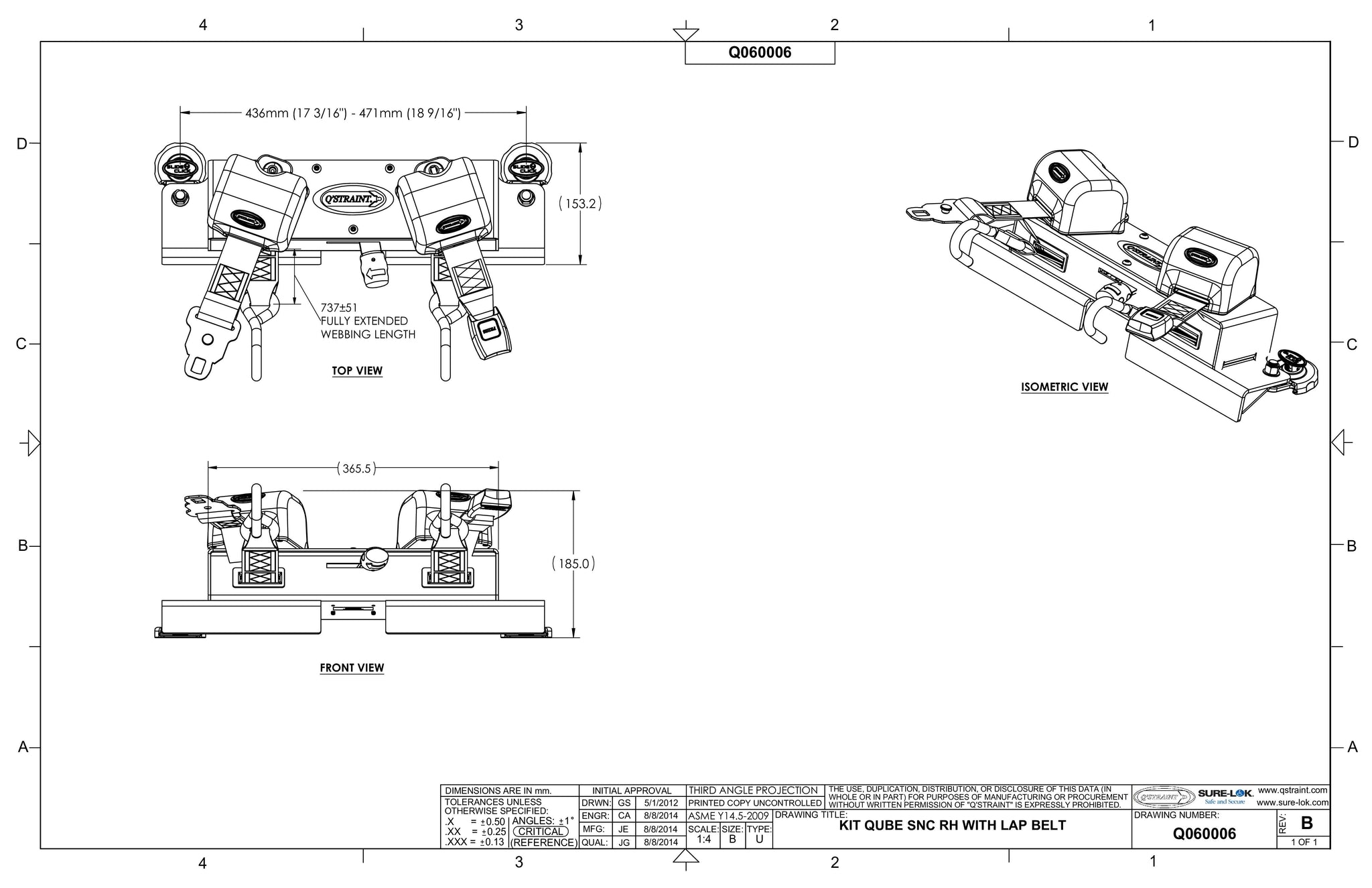

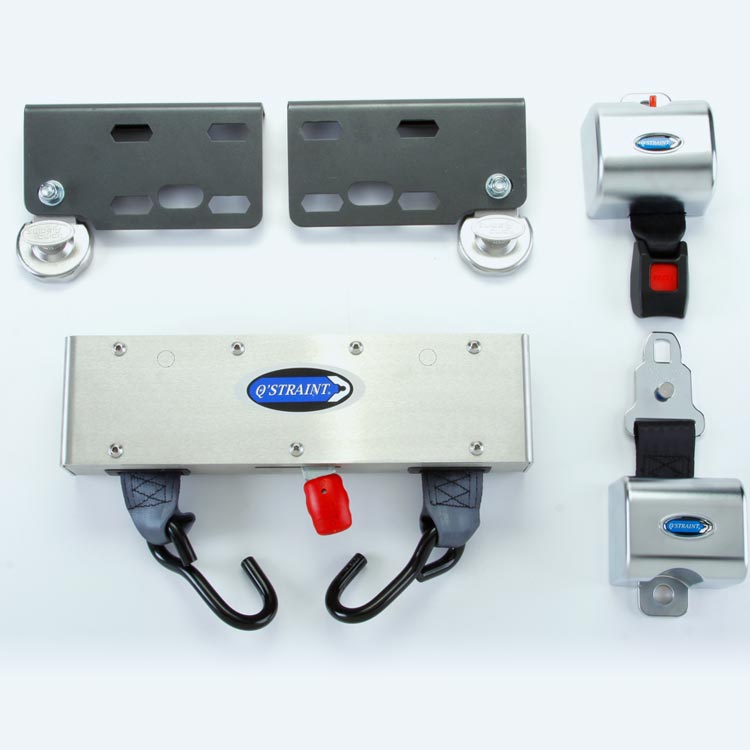

The Q'UBE is a fully adaptable, complete bolt-in wheelchair and occupant securement system. It's designed for new installs and retrofits in transit, paratransit, and school bus vehicles, with a wide range of brackets for floor, wall, or seat-pedestal mounting. This is the Curbside/Right-Hand or Street Side/Left-Hand unit with Slide 'N Click (SNC) rear connection.

SKU: Q060006 | VENDOR: Q'STRAINT

Q'UBE Bolt-in Wheelchair and Occupant Securement Kit w/ SNC | Q'Straint

✔ Free Shipping 🏷 Q'Straint

Key Features

🔧

Modular, Bolt-In Design

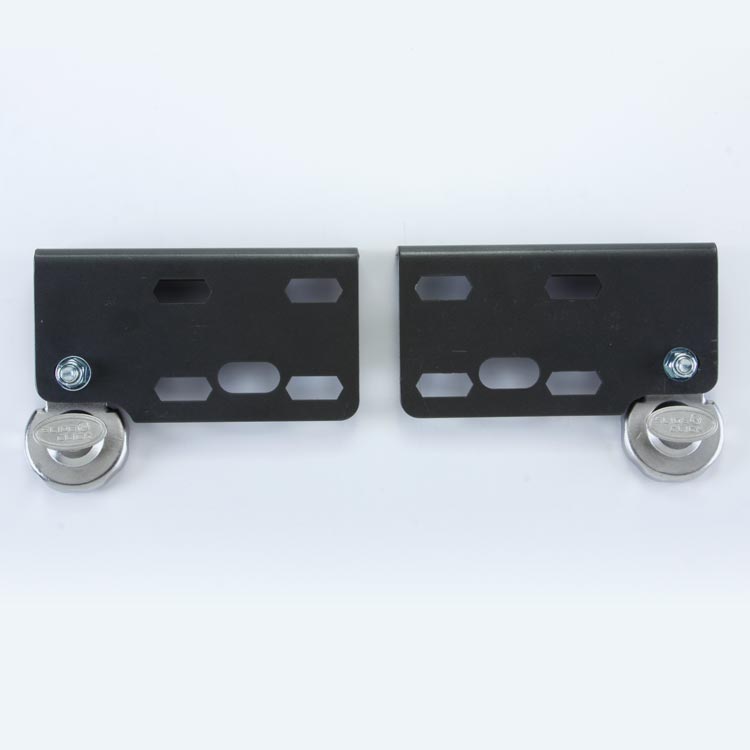

A wide range of brackets allows mounting to the floor, wall, or seat pedestal.

⏱

Mechanical Delay System

Easy-to-reach rear securement lever with clear "Locked"/"Unlocked" indication and a timed release.

🪝

J-Hooks

Rear securements use J-Hooks to eliminate dangerous belt twists and tangles.

🔒

Self-Tensioning & Self-Locking

Dual fully automatic retractors that auto-release, reducing physical strain on drivers.

📐

Low Profile

Fits easily under wheelchair footrests, eliminating aisle obstructions.

🔗

Pin Connector Option

Allows connection to existing occupant securements already installed in your vehicle.

What's Included

Qty	Component	SKU

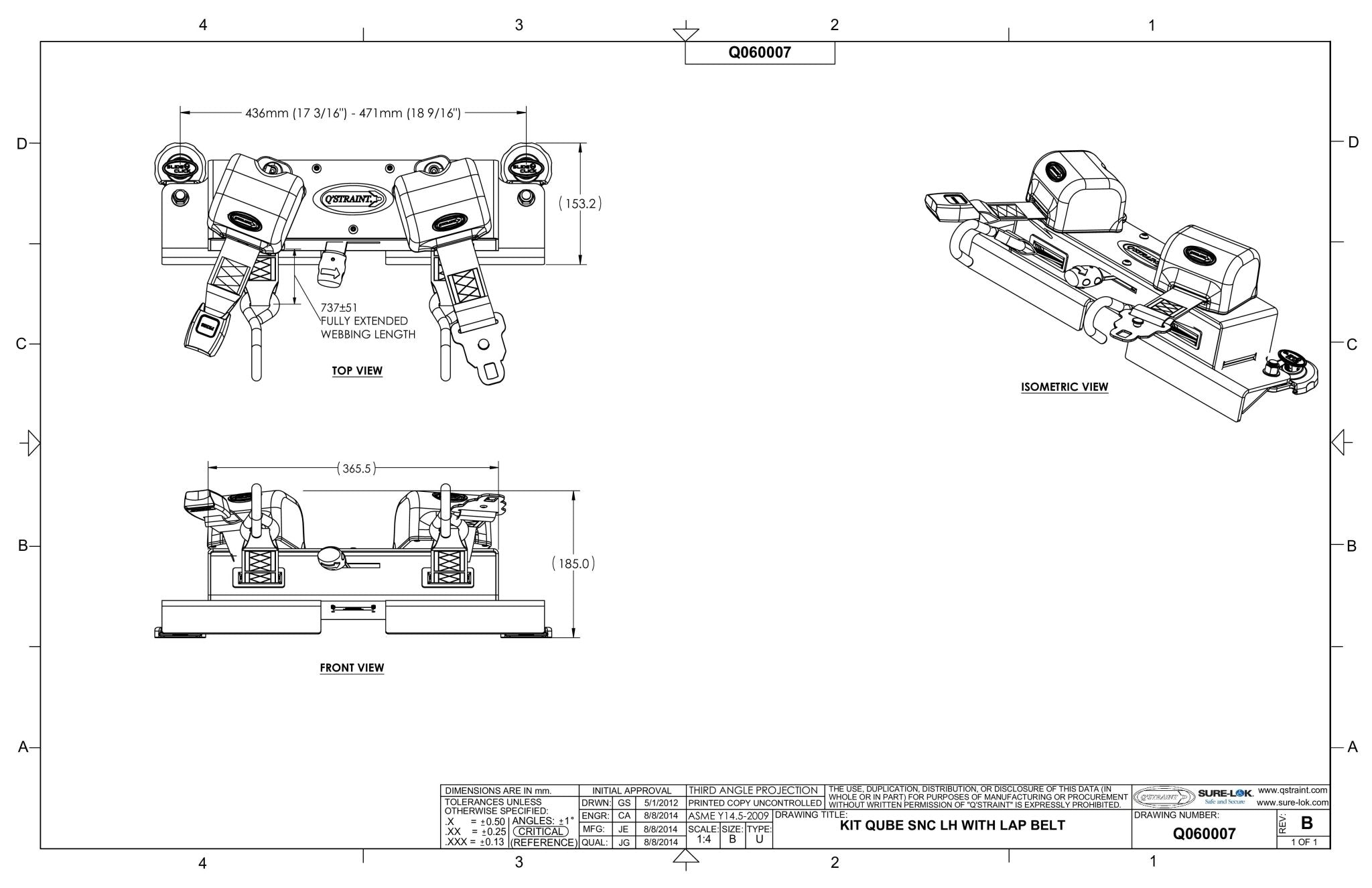

1	Q'UBE bolt-in wheelchair & occupant securement unit, SNC rear connection	Q060006 (Curbside / Right-Hand) Q060007 (Street Side / Left-Hand)

ℹ️ Note: The Q'UBE is a single-unit bolt-in system, not a multi-part kit. The optional retractable dual seatbelt for occupant securement mounts to the QUBE and is ordered separately — contact us to confirm the correct part for your configuration.

Vehicle Applications

🚌 School Bus🚌 Coach Bus🚌 City Bus🚆 Rail / Community Transit

🛡 Warranty: 3-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Product Documents: QUBE Brochure

Specifications

Specification	Detail
Brand	Q'Straint
Rear Connection	Slide 'N Click (SNC)
Warranty	3-year limited
Shipping	Free Shipping
