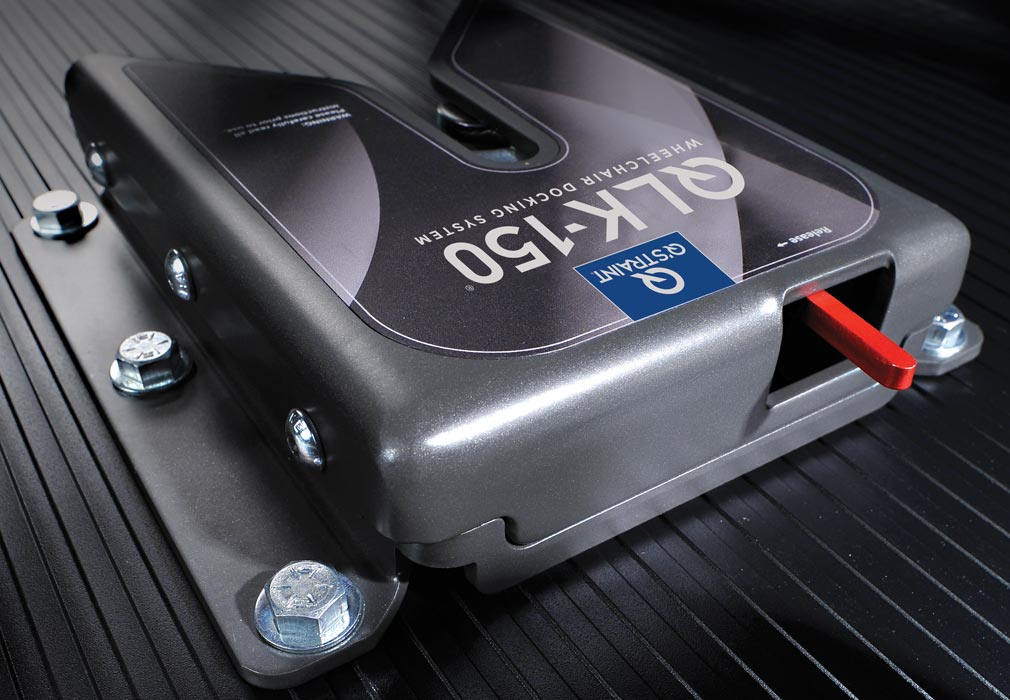

Q'Straint QLK-150® Personal Wheelchair Docking System with 2" Base Mount | OPTIONS

EXTENSIVE CRASH TESTING

The first and only docking system that meets the higher WC/19 wheelchair load requirements. Also, the only system tested Forward, Rearward, and Sideways.

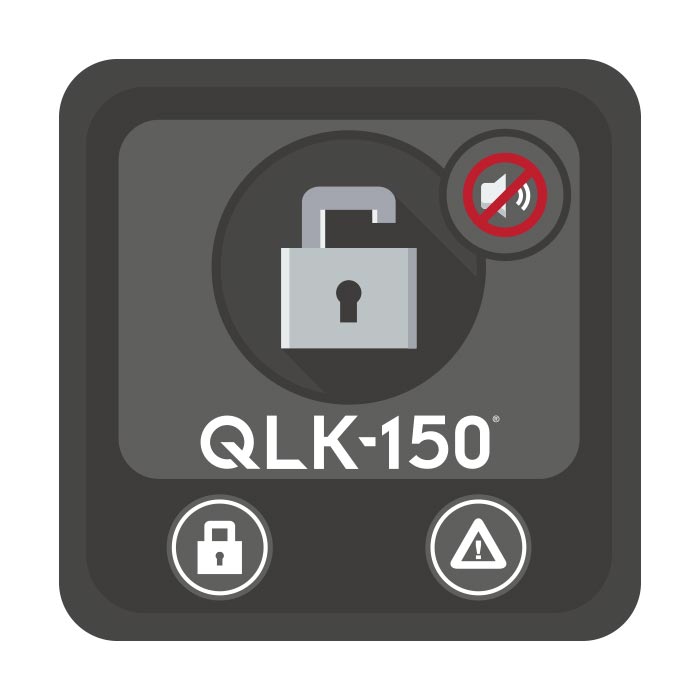

SLIM, FLEXIBLE DASH CONTROL

Compact design that blends in to modern vehicle interiors. Features a larger touch area and embedded LED indicators to show system status.

ADVANCED STABILIZER

Our unique Advanced Stabilizer allows the QLK-150 to be installed in the driver position. The stabilizer attaches easily to the QLK-150 cover and improves stability.

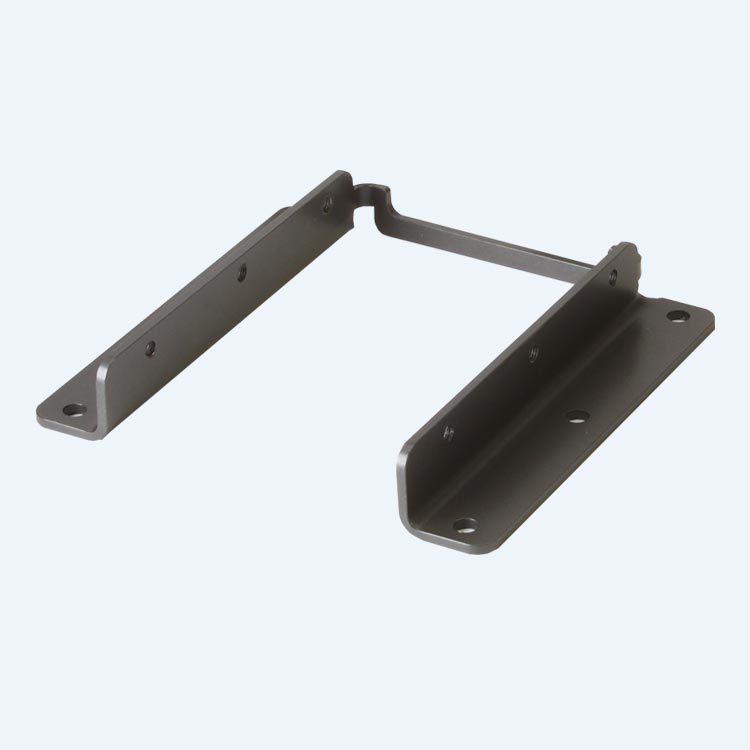

LOWEST/HIGHEST CLEARANCE

Optional base mounts allow for the docking system to be mounted from 1.5″ (38mm) all the way up to to 4″ (100mm). An optional 1.5″ floor mount allows previously un-dockable lower ground clearance wheelchairs such as the Jazzy Select 6 or Ultra Elite, to be easily secured.

SMART PROCESSOR

The newly designed microprocessor controller sends data directly from the control pad to the base unit putting the latest technology at your fingertips. A single micro-switch eliminates the need for a separate thermal switch, allowing for improved electrical reliability.

ECO FUNCTIONS

When the user is not in the docking base (sleep mode), the system draws just 76.5 microamps (0.0000765 amps), or about 5 times less than other docking systems. The solenoid release also features a low current draw of between 4.2 – 9.1 amps (versus the normal 18 amps).

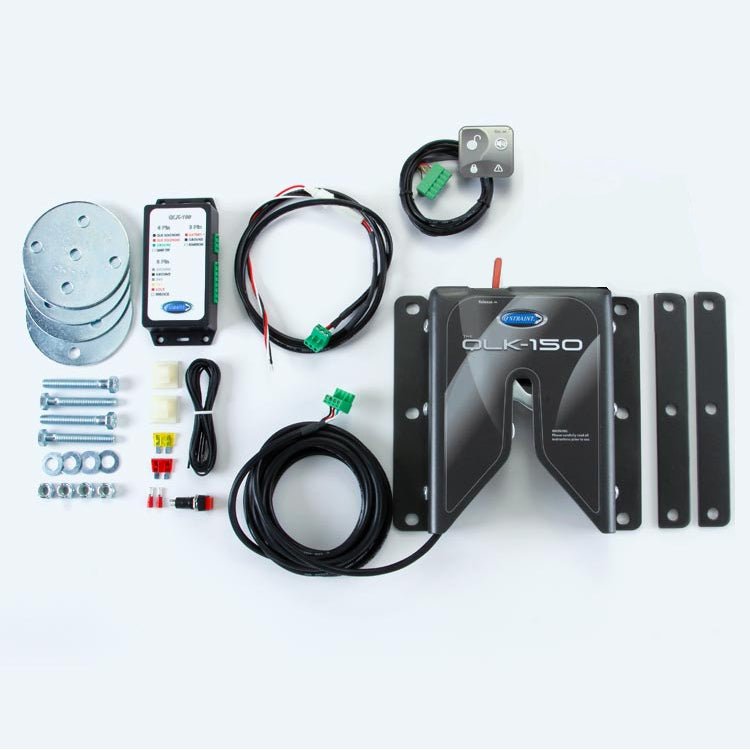

PLUG & PLAY SERVICE

Quick connectors and a removable cover allow for faster maintenance and easier servicing. Screw terminals are easily removed for faster wire routing and eliminate the need for any additional crimping or soldering.

REMOTE

Seamlessly pairs with your new or existing QLK-150 docking system.

HEAT-TREATED STEEL

All components are made of high-grade steel with eco-friendly coating, and each component (except for base mounts) is specially treated to increase strength and durability, reduce entry channel warping, and prevent corrosion.

SMALLER FOOTPRINT

The QLK-150 features a castor interference with shortened cover reducing the size by by 1.5″ (38mm) over the QLK-100, eliminating any castor interference.

FLUSH SURFACE WITH TAPERED CHANNEL

Eliminates snags and gives users a full 3/16″ (5mm) of additional bolt clearance. The tapered channel guides the user in, making it easier to dock.

OVER-TORQUE PROTECTION

Prevents system lockup if the internal hardware is accidentally over-torqued.

Vehicle Applications: Minivan, WAV

QLK-150 MEETS OR EXCEEDS THE FOLLOWING STANDARDS AND REGULATIONS:

WARRANTY
