FF600 Slide-N-Click Wheelchair Retractor Kit with Combination Retractable Occupant Restraint, Buckle & Tab
A proven, convenient system to secure wheelchair passengers.The FF600 Retractor Series System, which includes the FF661-4C-SNC, is the most convenient and proven wheelchair securement system you can buy today. The FF661-4C-SNC wheelchair securement kit includes 4 retractors for the series L-track.
The ergonomically designed handle is quick and easy to grasp, the dual, 24-teeth sprocket mechanism enables the user to increase tension on the webbing, and the track fittings are specifically designed to ensure free pivoting action for optimum belt alignment.
Kit Includes:
-

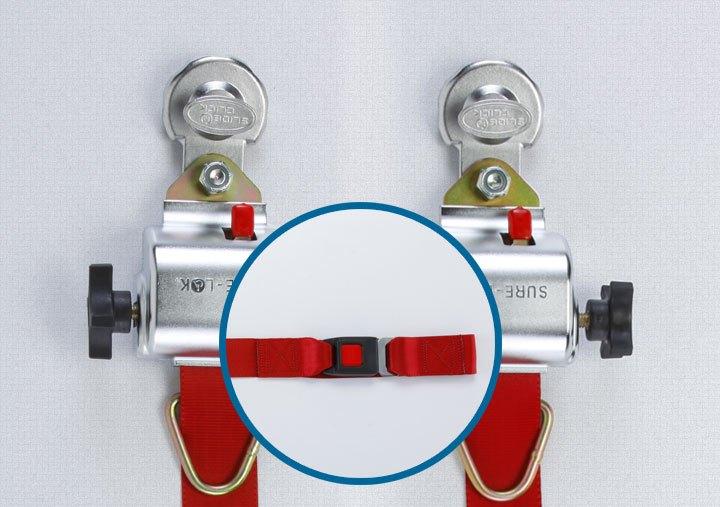

Qty 2 FF600 Series Right-Hand Wheelchair Retractors with SNC Fitting and Buckle/Tab (FE200944-SNC)
-
Qty 2 FF600 Series Left-Hand Wheelchair Retractors with SNC Fitting and Buckle/Tab (FE200945-SNC)
-

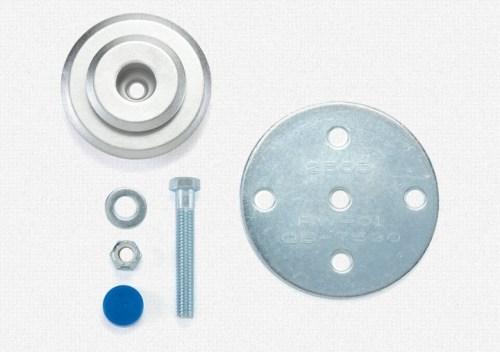

Qty 4 Slide ‘N Click Floor Anchor Kit (Q8-7580-A)
-
Bottom Assembly
3/8” (9.5mm) - Bolt 2.5” (63.5mm) in length
- Washer, Hex Nut and Blue Plug
FF600 Series Retractor Brochure
FF600 retractors, when properly used with a complete Sure-Lok System (comprised of wheelchair tie-down, a complete occupant restraint system, including lap and shoulder belt), track and anchorages are designed to meet the following requirements where applicable:
-
30mph/20g Impact Test Criteria per SAE J2249
-
30mph/20g Impact Test Criteria per Canadian Z605 Standard
-
30mph/20g Impact Test Criteria per National Standards for School Buses
-
49 CFR Part 38 Americans with Disabilities Act (ADA)
-
49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection
